Let me walk you through what k-means is, why it is called k-means, and how the algorithm interally works, step by step.

Let me dissect that sentence for you, starting at the back.

Algorithm

Simply put, an algorithm (wiki) is a set of task instructions to be followed. Often algorithms are perform by computers, and used in calculations or problem-solving. Basically, an algorithm is thus not much more than a sequence of task instructions to be followed by a computer — like a cooking recipe.

In machine learning (wiki), algorithmic tasks are often divided in supervised or unsupervisedlearning (let’s skip over reinforcement learning for now).

The learning part reflects that algorithms try to learn a solution — learn how to solve a problem.

The supervision part reflects whether the algorithm receives answers or solutions to learn from. For supervised learning, examples are required. In the case of unsupervised learning, algorithms do not learn by example but have figure out a proper solution themselves.

Clustering

Clustering (wiki) is essentially a fancy word for grouping. Clustering algorithms seek to group things together, and try to do so in an optimal way.

Group things. As long as we can represent things in terms of data, clustering algorithms can group them. We can group cars by their weight and horsepower, people by their length and IQ, or frogs by their slimyness and greenness. These things we would like to group, we often call observations (depicted by the letter N or n).

Optimal way. Clustering is very much an unsupervised task. Clustering algorithms do not receive examples to learn from (that’s actually classification (wiki)). Algorithms are not told what “good” clustering or grouping looks like.

Yet, how do clustering algorithms determine the optimal way to group our observations then?

Well, clustering algorithms like k-means do so by optimizing a certain value. This value is reflected in an algorithm’s so-called objective function.

k-means’ objective function is displayed below. In simple language, k-means seeks to minimize (= optimize) the total distance of observations (= cases) to their group’s (= cluster) center (= centroid).

Fortunately, you can immediately forget this function. For now, all you need to know is that algorithms often repeat specific steps of their instructions in order for their objective function to produce a satisfactory value.

Why is k-means called k-means?

Hurray, we can now move to the k-means algorithm itself!

Why is it called k-means in the first place?

Let’s start at the front this time.

k. The k in k-means reflects the number of groups the algorithm is going to form. The algorithm depends on its user to specify what number of k should be. If the user picks k = 2 for instance, the k-means algorithm will identify 2 group by their 2 means.

As I said before, clustering algorithms like k-means are unsupervised. They do not know what good clustering looks like. In the case where the used specified k = 2, the algorithm will seek to optimize its objective function given that there are 2 groups. It will try to put our observations in 2 groups that minimizes the total distance of the observations to their group’s center. I will how that works visually later in this blog.

means. The means in k-means reflects that the algorithm considers the mean value of a cluster as its cluster center. Here, mean is a fancy word for average. Again, I will visualize how this works later.

You might have guessed it already: there are indeed variations of the k-means algorithm that do not use the cluster means, but, for instance, the cluster medians (wiki) or mediods (wiki). These algorithms are only slight modifications of the k-means algorithm, and simply called the k-medians (wiki) and k-medoids algorithms (wiki).

How does k-means work?

Finally, we get to the inner workings of k-means!

The k-means algorithm consists of five simple steps:

Obtain a predefined k.

Pick k random points as cluster centers.

Assign observations to their closest cluster center based on the Euclidean distance.

Update the center of each cluster based on the included observations.

Terminate if no observations changed cluster, otherwise go back to step 3.

Easy right?

OK, I can see how this may not be directly clear.

Let’s run through the steps one by one using an example dataset.

Example dataset: mtcars

Say we have the dataset below, containing information on 32 cars.

We can consider each car a separate observation. For each of these observations, we have its weight and its horsepower.

These characteristics — weight and horsepower — of our observations are the variables in our dataset. Our cars vary based on these variables.

Name

Weight

Horsepower

Mazda RX4

1188

110

Mazda RX4 Wag

1304

110

Datsun 710

1052

93

Hornet 4 Drive

1458

110

Hornet Sportabout

1560

175

Valiant

1569

105

Duster 360

1619

245

Merc 240D

1447

62

Merc 230

1429

95

Merc 280

1560

123

Merc 280C

1560

123

Merc 450SE

1846

180

Merc 450SL

1692

180

Merc 450SLC

1715

180

Cadillac Fleetwood

2381

205

Lincoln Continental

2460

215

Chrysler Imperial

2424

230

Fiat 128

998

66

Honda Civic

733

52

Toyota Corolla

832

65

Toyota Corona

1118

97

Dodge Challenger

1597

150

AMC Javelin

1558

150

Camaro Z28

1742

245

Pontiac Firebird

1744

175

Fiat X1-9

878

66

Porsche 914-2

971

91

Lotus Europa

686

113

Ford Pantera L

1438

264

Ferrari Dino

1256

175

Maserati Bora

1619

335

Volvo 142E

1261

109

Visually, we can represent this same dataset as follows:

Step 1: Define k

For whatever reason, we might want to group these 32 cars.

We know the cars’ weight and horsepower, so we can use these variables to group the cars. The underlying assumption being that cars that are more similar in terms of weight and/or horsepower would belong together in the same group.

Normally, we would have smart or valid reasons to expect a specific number of groups among our observations. For now, let’s simply say that we want to put these cars into, say, 2 groups.

Well, that’s step 1 already completed: we defined k = 2.

Step 2: Initialize cluster centers

In step 2, we need to initialize the algorithm.

Everyone needs to start somewhere, and the default k-means algorithm starts out super naively: it just picks random locations as our starting cluster centers.

For instance, the algorithm might initialize cluster 1 randomly at a weight of 1000 kilograms and a horsepower of 100.

We can use coordinate notation [x; y] or [weight; horsepower] to write this location in short. Hence, the initial random center of cluster 1 picked by the k-means algorithm is located at [1000; 100].

Randomly, k-means could initialize cluster 2 at a weight of 1500kg and a horsepower of 200. It’s intitial center is thus at [1500; 200].

Visually, we can display this initial situation like the below, with our 32 cars as grey dots in the background:

Now, step 2 is done, and our k-means algorithm has been fully initialized. We are now ready to enter the core loop of the algorithm. The next three steps — 3, 4, and 5 — will be repeated until the algorithm tells itself it is done.

Step 3: Assignment to closest cluster

Now, in step 3, the algorithm will assign every single car in our dataset to the cluster whose center is closest.

To do this, the algorithm looks at every car, one by one, and calculate its distance to every of our cluster centers.

So how would this distance calculating thing work?

The algorithm starts with the first car in our dataset, a Mazda RX4.

This Mazda RX4 weighs 1188kg and has 110 horsepower. Hence, it is located at [1188; 110].

As this is the first time our k-means algorithm reaches step 3, the cluster centers are still at the random locations the algorithm has picked in step 2.

The k-means algorithm now calculates the Euclidean distance (wiki) of this Mazda RX4 data point [1188; 110] to each of the cluster centers.

The Euclidean distance is calculated using the formula below. The first line shows you that the Euclidean distance is the square root of the squared distance between two observations. The second line — with the big Greek capital letter Sigma (Σ) — is a shorter way to demonstrate that the distance is calculated and summed up for each of the variables considered.

Again, please don’t mind the formula, the Euclidean distance is basically the length of a straight line between two data points.

So… back to our Mazda RX4. This Mazda is one of the two observations we need to input in the formula. The second observation would be a cluster center. We input both of the location of our Mazda [1188; 110] and that of a cluster center –, say cluster 1’s [1000; 100] — in the formula, and out comes the Euclidean distance between these two observations.

The Euclidean distance of our Mazda RX4 to the center of cluster 1 would thus be √((1118 – 1000)^{2} + (110 – 100)^{2}), which equals 192.2082 — or a rounded 192.

We need to repeat this, but now with the location of our second cluster center. The Euclidean distance from our Mazda RX4 to the center of cluster 2 would be √((1118 – 1500)^{2} + (110 – 150)^{2}), which equals 314.5537 — or a rounded 314.

Again, I visualized this situation below.

You can clearly see that our Mazda RX4 is closer to cluster center 1 (192) than to cluster center 2 (314). Hence, as the distance to cluster 1’s center is smaller, the k-means algorithm will now assign our Mazda RX4 to cluster 1.

Subsequently, the algorithm continues with the second car in our dataset.

Let this second car be the Mercedes 280C for now, weighing in at 1560 kg with a horsepower of 153.

Again, the k-means algorithm would calcalute the Euclidean distance from this Mercedes [1560; 153] to each of our cluster centers.

It would find that this Mercedes is located much closer to cluster 2’s center (560) than cluster 1’s (65).

Hence, the k-means algorithm will assign the Mercedes 280C to cluster 2, before continuing with the next car…

and the next car after that…

and the next car…

… until all cars are assigned to one of the clusters.

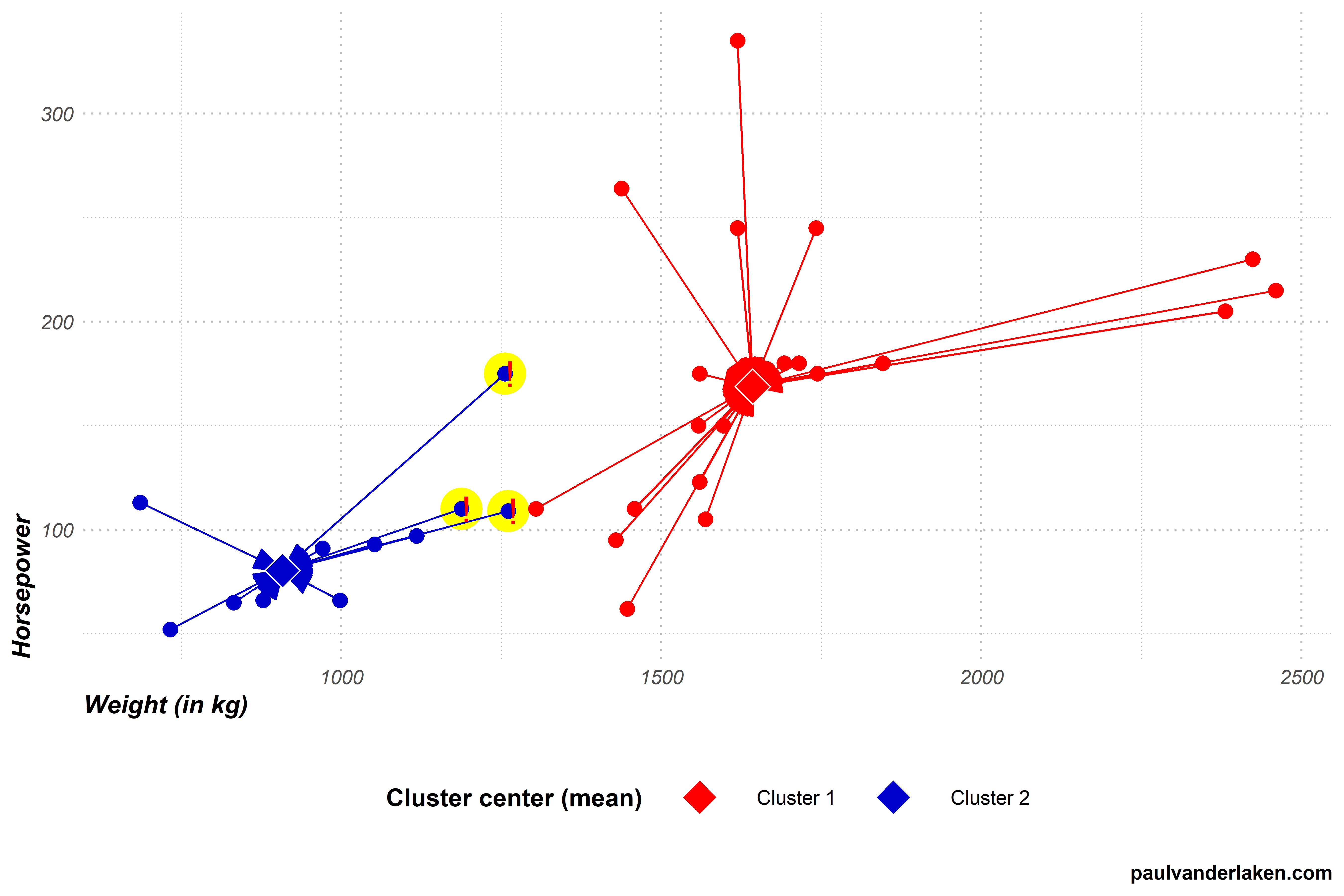

This would mean that step 3 is completed. Visually, the situation at the end of step 3 will look like this:

Step 4: Update the cluster centers

Now, in step 4, the k-means algorithm will update the cluster centers.

As a result of step 3, there are now actual observations assigned to the clusters. Hence, the k-means algorithm can let go of its naive initial random guesses and calculate the actual cluster centers.

Because we are dealing with the k-means algorithm, these centers will be based on the mean values of the observations in each group.

So for each cluster, the algorithm takes the observations assigned to it, and calculates the cluster’s mean value for every variable. In our case, the algorithm thus calculates 4 means: the average weight and the average horsepower, for each of our two clusters.

For cluster 1, the average weight of its cars is a rounded 939 kg. Its average horsepower is approximately 84. Hence the cluster center is updated to location [939; 84]. Cluster 2’s mean values come in at [1663; 171].

With the cluster centers updated, the k-means algorithm has finished step 4. Visually, the situation now looks as follows, with the old cluster centers in grey.

Step 5: Terminate or go back to step 3.

So that was actually all there is to the k-means algorithm. From now on, the algorithm either terminates or goes back to step 3.

So how does the k-means algorithm know when it is done?

Earlier in this blog post I already asked “how do clustering algorithms determine the optimal way to group our observations?”

Well, we already know that the k-means algorithm wants to optimize its objective function. It seeks to minimize the total distance of observations to their respective cluster centers. It does so by assigning observations to the cluster whose center is nearest according to the Euclidean distance.

Now, with the above in mind, the k-means algorithm determines that it has reached an optimal clustering solution if, in step 3, no single observation switches to a different cluster.

If that is the case, then every observation is assigned to the group whose center values best represent its underlying characteristics (weight and horsepower), and the k-means algorithm is thus satisfied with the solution given this number of groups (= k). These groups centers now best describe the characteristics of the individual observations at hand, given this k, as evidenced that each observations belongs to the cluster whose center values are closest to their own values.

Now, the k-means algorithm will have to check whether it is done somewhere in its instructions. It seems most logical to directly do this in step 3: quickly check whether every observations remained in its original cluster.

This is not so difficult if you have only 32 cars. However, what if we were clustering 100.000 cars? We would not want to check for 100.000 cars whether they remained in their respective cluster, right? That’s a heavy task, even for a computer.

Potentially there is an easier way to check this? Maybe we could look at our cluster centers? We update them in step 4. And if no observations have changed clusters, then the locations of our cluster centers will for sure also not have changed.

Even in our simple example it is less work to see check whether 2 cluster centers have remained the same, than comparing whether 32 cars have not changed clusters.

So basically, that’s what we will do in this step five. We check whether our cluster centers have moved.

In this case, they did. As can be seen in the visual at the end of step 4.

This is also to be expected, as it is very unlikely that the algorithm could have randomly picked the initial cluster centers in their optimal locations, right?

We conclude step 5 and, because the cluster center locations have changed in step 4, the algorithm is sent back to step 3.

Let’s see how the k-means algorithm continues in our example.

Step 3 (2nd time): Assignment to closest cluster

In step 3, the algorithm reassigns every car in our dataset to the cluster whose center is nearest.

To do this, the algorithm has to look at every car, one by one, and calculate its distance to every of our cluster centers.

Our cluster centers have been updated in the previous step 4. Hence, the distances between our observations and cluster centers may have changed respective to the first time the algorithm performed step 3.

Indeed two cars that were previously closer to the blue cluster 2 center are now actually closer to the red cluster 1 center.

In this step 3, again all observations are assigned to their closest clusters, and two observations thus change cluster.

Visually, the situation now looks like the below. I’ve marked the two cars that switched in yellow and with an exclamation mark.

The k-means algorithm now again reaches step 4.

Step 4 (2nd time): Update the cluster centers

In step 4, the algorithm updates the cluster centers. Because we are dealing with the k-means algorithm, these centers will be based on the mean values of the observations in each group.

For cluster 1, both the average weight and the average horsepower have increased due to the two new cars. The cluster center thus moves from approximately [939; 84] to [998; 94].

Cluster 2 lost two cars from its cluster, but both were on the lower end of its ranges. Hence its average weight and horsepower have also increased, moving the center from approximately [1663; 171] to [1701; 174].

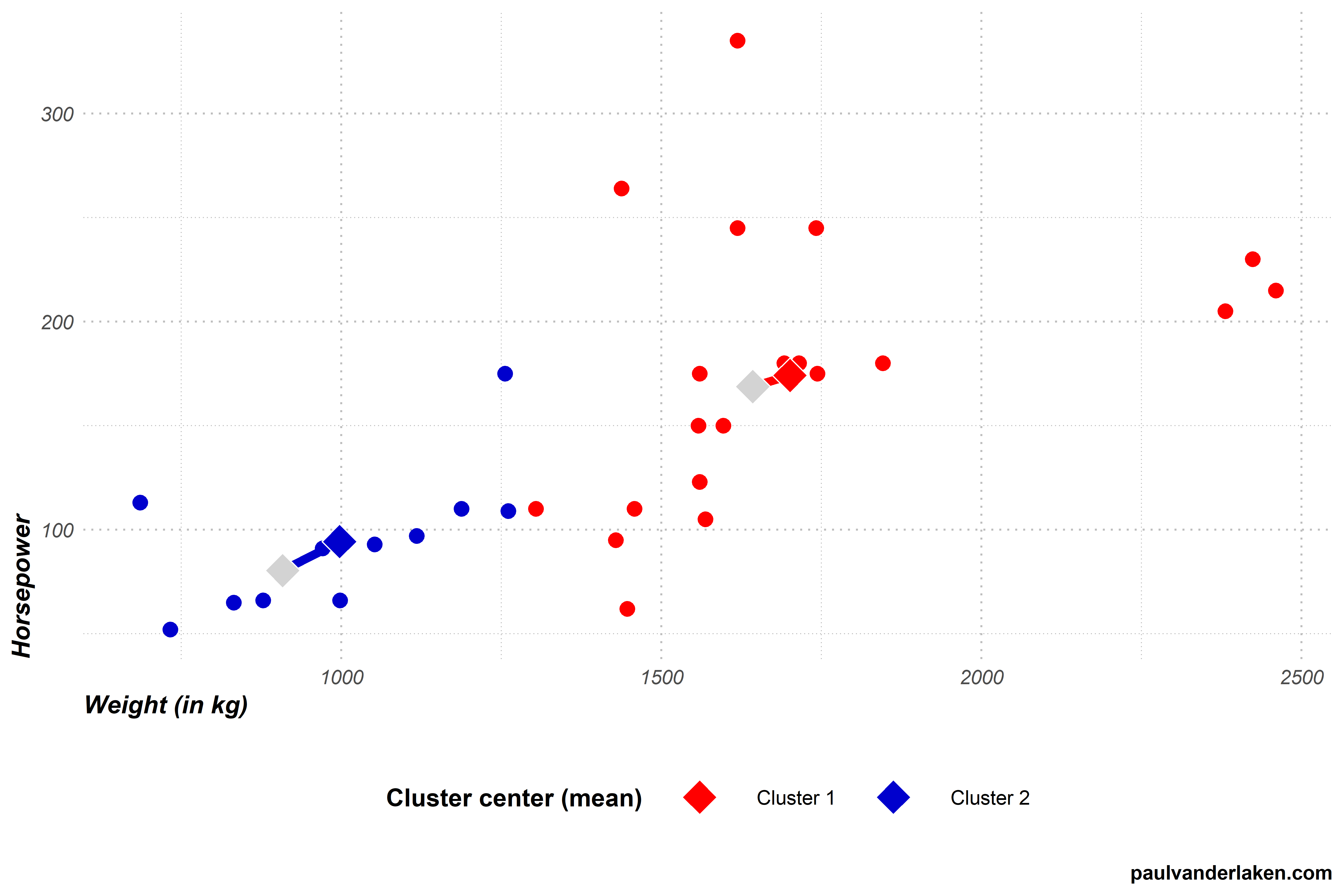

With the cluster centers updated, step 4 is once again completed. Visually, the situation now looks as follows, with the old centers in grey.

Step 5 (2nd time): Terminate or go back to step 3.

In step 5, the k-means algorithm again checks whether it is done. It concludes that it is not, because the cluster centers have both moved once more. This indicates that at least some observations have changed cluster, and that a better solution may be possible. Hence, the algorithm needs to return to step 3 for a third time.

Are you still with me? We are nearly there, I hope…

Step 3 (3nd time): Assignment to closest cluster

In step 3, the algorithm assigns every car in our dataset to the cluster whose center is nearest. To do this, the algorithm looks at every car, one by one, and calculates its distance to each of our cluster centers. As our cluster centers have been updated in the previous step 4, so too will their distances to the cars.

After calculating the distances, step 3 is once again completed by assigning the observations to their closest clusters. Another car moved from the blue cluster 2 to the red cluster 1, highlighted in yellow with an exclamation mark.

Step 4 (3rd time): Update the cluster centers

In step 4, the algorithm updates the cluster centers. For each cluster, it looks at the values of the observations assigned to it, and calculates the mean for every variable.

For cluster 1, both the average weight and the average horsepower have again increased slightly due to the newly assigned car. The cluster center moves from approximately [998; 94] to [1023; 96].

Cluster 2 lost a car from its cluster, but it was on the lower end of its range. Hence, its average weight and horsepower have also increased, moving the cluster center from approximately [1701; 174] to [1721; 177].

With the renewed cluster centers, step 4 is once again completed. Visually, the situation looks as follows, with the old centers in grey.

Step 5 (3rd): Terminate or go back to step 3.

In step 5, the k-means algorithm will again conclude that it is not yet done. The cluster centers have both moved once more, due to one car changing from cluster 2 to cluster 1 in step 3 (3rd time). Hence, the algorithm returns to step 3 for a fourth, but fortunately final, time.

Step 3 (4th time): Assignment to closest cluster

In step 3, the k-means algorithm assigns every car in our dataset to the cluster whose center is nearest. Our cluster centers have only changed slightly in the previous step 4, and thus the distances are nearly similar to last time. Hence, this is the first time the algorithm completes step 3 without having to reassign observations to clusters. We thus know the algorithm will terminate the next time it checks for cluster changes.

Step 4 (4th time): Update the cluster centers

In step 4, the k-means algorithm tries to update the cluster centers. However, no observations moved clusters in step 3 so there is nothing to update.

Step 5 (4th): Terminate or go back to step 3.

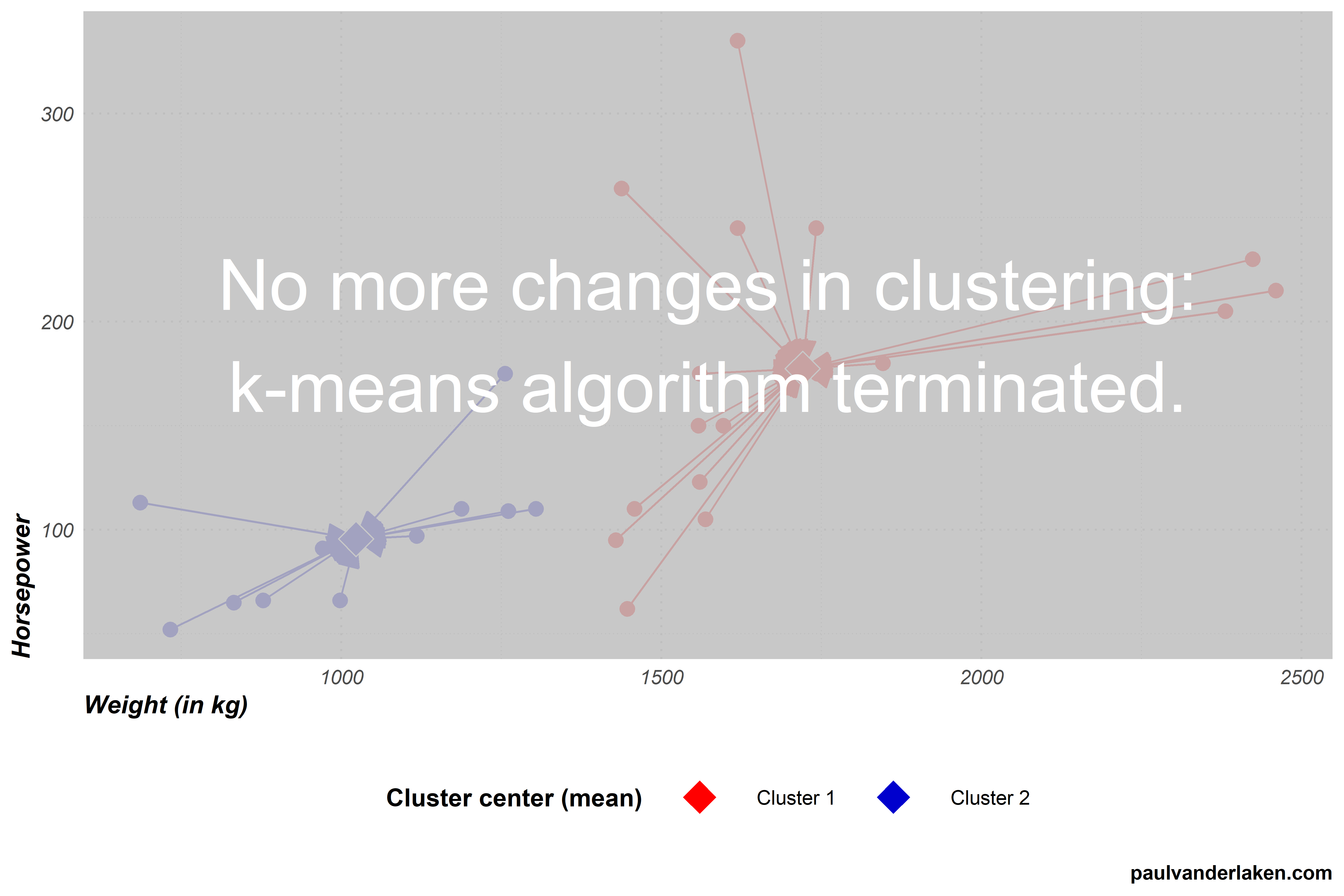

As no changes occured to our cluster centers, the algorithm now concludes that it has reached the optimal clustering and terminates.

The clustering solution

With the clustering now completed, we can try to make some sense of the clusters the k-means algorithm produced.

For instance, we can examine how the observations included in each cluster vary on our variables. The density plot below is an example how we could go about exploring what the clusters represent.

We can clearly see what the clusters are made up of.

Cluster 1 holds most of the cars with low horsepower, and nearly all of those with low weights.

Cluster 2, in contrast, includes cars with horsepower ranging from low through high, and all cars are relatively heavy.

We could thus name our clusters respecitvively low horsepower and low weight cars, for cluster 1, and medium to high weight cars, for cluster 2.

Obviously, these clustering solutions will become more interesting as we add more clusters, and more variables to seperate our clusters and observations on.

A word of caution regarding k-means

Normalized input data

In our car clustering example, particularly the weight of cars seemed to be an important discriminating characteristic.

This is largely due to the fact that we didn’t normalize our data before running the k-means algorithm. I explicitly didn’t normalize (wiki) for simplicity sake and didactic purposes.

However, using k-means with raw data is actually a really easily-made but impactful mistake! Not normalizing data will cause k-means to put relative much importance on variables with a larger variance. Such as our variable weight. Cars’ weights ranged from a low 686 kg, to a high 2460 kg, thus spreading almost 1800 units. In contrast, horsepower ranged only from 52 hp to 335 hp, thus spreading less than 300 units.

If not normalized, this larger variation among weight values will cause the calculated Euclidean distance to be much more strongly affected by the weights of cars. Hence, these car weights will thus more strongly determine the final clustering solution simply because of their unit of measurement. In order to align the units of measurement for all variables, you should thus normalize your data before running k-means.

No categorical data

The need to normalize input data before running the k-means algorithm also touches on a second important characteristic of k-means: it does not handle categorical data.

Categorical data is discrete, and doesn’t have a natural origin. For instance, car color is a categorical variable. Cars can be blue, yellow, pink, or black. You can really calculate Euclidean distances for such data, at least not in a meaningful way. How far is blue from yellow, further or closer than it is from black?

Fortunately, there are variations of k-means that can handle categorical data, for instance, the k-modes algorithm.

No garuantees

The k-means algorithm does not guarantee to find the optimal solution. k-means is a fairly simple sequence of tasks and its clustering quality depends a lot on two factors.

First, the k specified by the user. In our example, we arbitrarily picked k = 2. This makes the algorithm seek specifically for solutions with two clusters, whereas maybe 3- or 4-cluster solutions would have made more sense.

Sometimes, users will have good theories to expect a certain number of clusters. At other times, they do not and are left to guess and experiment.

While there are methods to assess to some extent the statistically optimal number of clusters, often the decision for k will be somewhat subjective, though strongly affect the clustering solution..

Second, and more imporant maybe, is the influence of the random starting points for the initial cluster centers picked by the algorithm itself.

The clustering solutions that the algorithm produces are very sensitive to these initial conditions.

Due to its random starting points, it is also very likely that every time you run the k-means algorithm you will get different results, even on the same dataset.

To illustrate this, I ran the k-means visualization algorithm I wrote run a dozen of times.

Below is solution number 3 to which the k-means algorithm converged for our cars dataset. You can see that this is different from our earlier solution where the car at [1450; 270] belonged to the blue cluster 2, whereas here it is assigned to the red cluster 1.

Most k-means algorithms I ran on this dataset of cars resulted in approximately the same solution, like the one above and the one we saw before.

However, the k-means algorithm also produced some very different solutions. Like the one below, number 9. In this case cluster 2 was randomly initiated very muhc on the high end of the weight spectrum. As a result, the cluster 2 center remained all the way on the right side of the graph throughout the iterations of the algorithm.

Or this take this long-lasting iteration, where the k-means algorithm randomly located both cluster centers all the way in the bottom left corner, but fortunately recovered to the same solution we saw before.

One the one hand, the k-means algorithm sequences above illustrate the danger and downside of the k-means algorithm employing its random starting points. On the other hand, the mostly similar solutions produced even by the vanilla algorithm illustrate how the fantasticly simple algorithm is quite sturdy. Moreover, many smart improvements have fortunately been developed to avoid the random stupidity produced by the default algorithm — most notably the k-means++ algorithm (wiki). With these improvements, k-means continues to be one of the simplest though most popular and effective clustering algorithms out there!

Thanks for reading this blog!

While I intended to only share the link to the interactive visualization, I got carried away and ended up simulating the whole thing myself. Hopefully it wasn’t time wasted, and you learned a thing or two

Do reach out if you want to know more or are interested in the code to generate these simulations and visuals. Also, feel free to comment on, forward, or share any of the contents!

The cars dataset you can access in R by calling mtcars directly in your R console. Do explore it, as it contains many more variables on these 32 cars.

Some additional k-means resources

Here are some pages you can browse if you’re looking to learn more.
