OpenCV is open-source library with tools and functionalities that support computer vision. It allows your computer to use complex mathematics to detect lines, shapes, colors, text and what not.

OpenCV was originally developed by Intel in 2000 and sometime later someone had the bright idea to build a Python module on top of it.

Using a simple…

pip install opencv-python

…you can now use OpenCV in Python to build advanced computer vision programs.

And this is exactly what many professional and hobby programmers are doing. Specifically, to get their computer to play (and win) mobile app games.

ZigZag

In ZigZag, you are a ball speeding down a narrow pathway and your only mission is to avoid falling off.

Using OpenCV, you can get your computer to detect objects, shapes, and lines.

This guy set up an emulator on his computer, so the computer can pretend to be a mobile device. Then he build a program using Python’s OpenCV module to get a top score

You can find the associated code here, but note that will need to set up an emulator yourself before being able to run this code.

Kick Ya Chop

In Kick Ya Chop, you need to stomp away parts of a tree as fast as you can, without hitting any of the branches.

This guy uses OpenCV to perform image pattern matching to allow his computer to identify and avoid the trees braches. Find the code here.

Whack ‘Em All

We all know how to play Whack a Mole, and now this computer knows how to too. Code here.

Pong

This last game also doesn’t need an introduction, and you can find the code here.

Is this machine learning or AI?

If you’d ask me, the videos above provide nice examples of advanced automation. But there’s no real machine learning or AI involved.

Yes, sure, the OpenCV package uses pre-trained neural networks under the hood, and you can definitely call those machine learning. But the programmers who now use the opencv library just leverage the knowledge stored in those network to create very basal decision rules.

IF pixel pattern of mole
THEN whack!
ELSE no whack.

To me, it’s only machine learning when there’s really some learning going on. A feedback loop with performance improvement. And you may call it AI, IMO, when the feedback loop is more or less autonomous.

Fortunately, programmers have also been taking a machine learning/AI approach to beating games. Specifically using reinforcement learning. Think of famous applications like AlphaGo and AlphaStar. But there are also hobby programmers who use similar techniques. For example, to get their computer to obtain highscores on Trackmania.

In a later post, I’ll dive into those in more detail.

Vincent Warmerdam shared this Youtube video which I thoroughly enjoyed watched. It’s about Saul Pwanson, a software engineer whose hobby project got a little out of hand.

In 2016, Saul Pwanson designed a plain-text file format for crossword puzzle data, and then spent a couple of months building a micro-data-pipeline, scraping tens of thousands of crosswords from various sources.

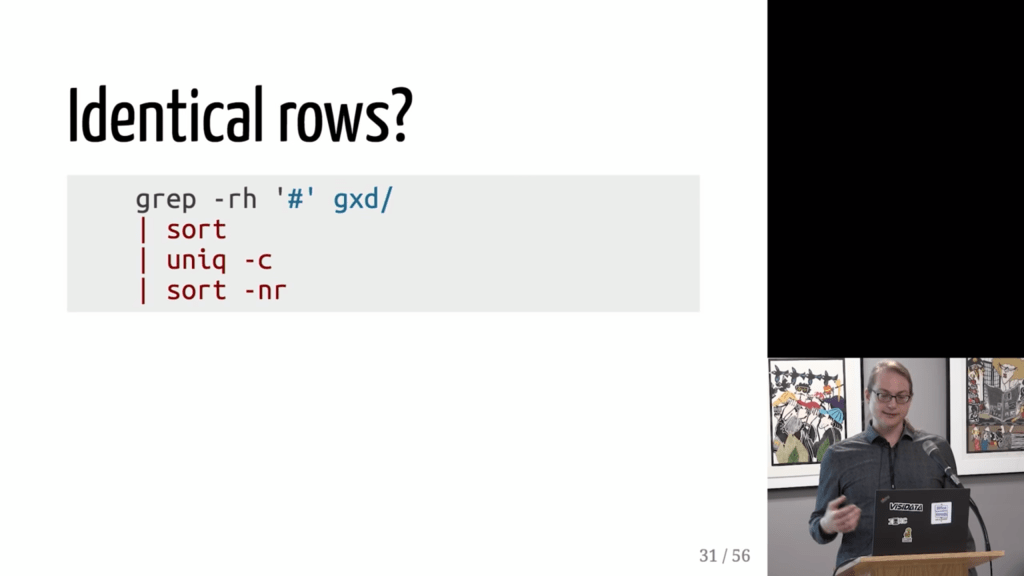

After putting all these crosswords in a simple uniform format, Saul used some simple command line commands to check for common patterns and irregularities.

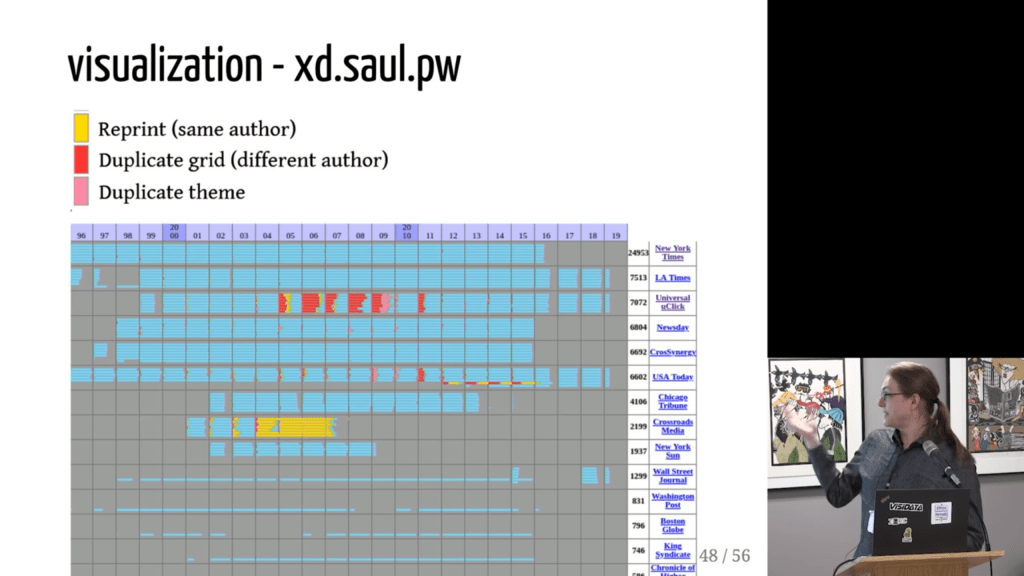

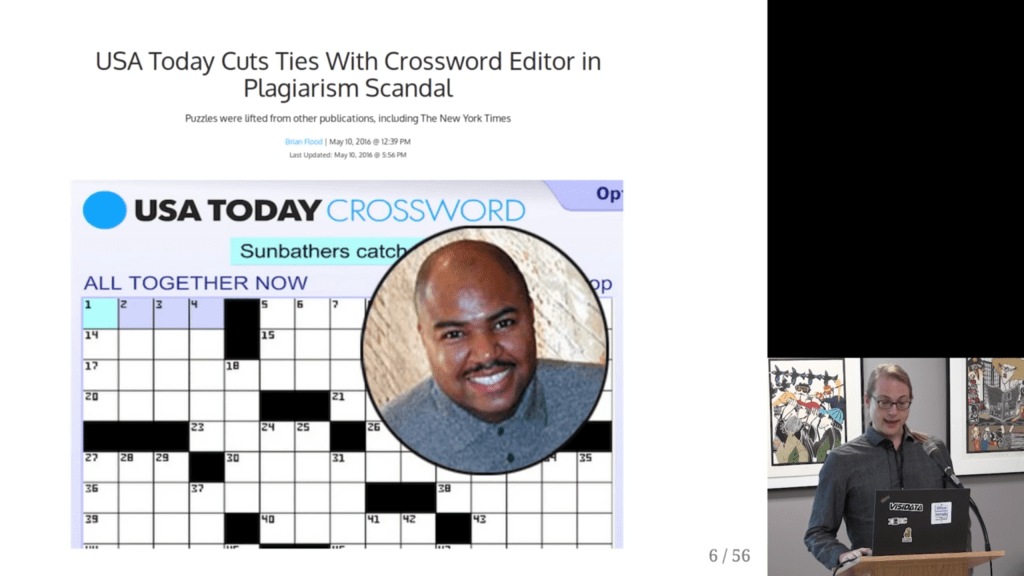

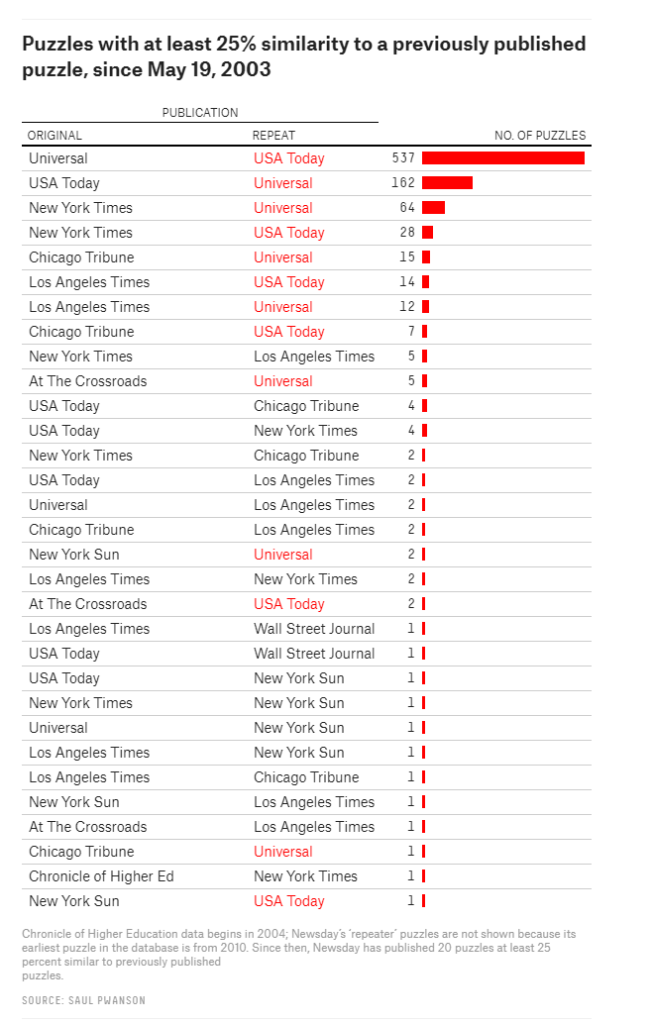

Surprisingly enough, after visualizing the results, Saul discovered egregious plagiarism by a major crossword editor that had gone on for years.

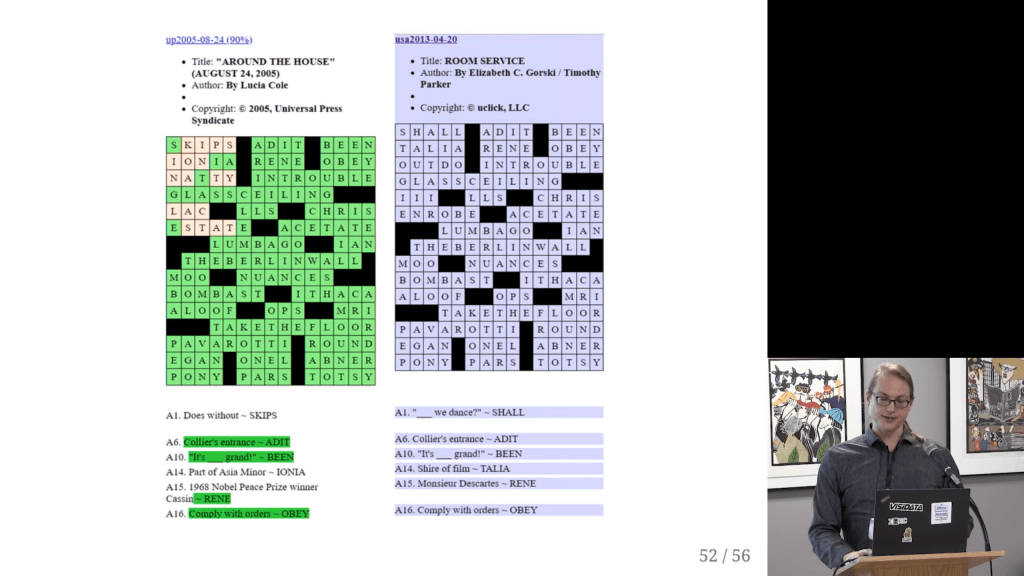

I thoroughly enjoyed watching this talk on Youtube.

Saul covers the file format, data pipeline, and the design choices that aided rapid exploration; the evidence for the scandal, from the initial anomalies to the final damning visualization; and what it’s like for a data project to get 15 minutes of fame.

I tried to localize the dataset online, but it seems Saul’s website has since gone offline. If you do happen to find it, please do share it in the comments!

Update March, 2021: My R package for the predictive power score (ppsr) is live on CRAN! Try install.packages("ppsr") in your R terminal to get the latest version.

A few months ago, I wrote about the Predictive Power Score (PPS): a handy metric to quickly explore and quantify the relationships in a dataset.

As a social scientist, I was taught to use a correlation matrix to describe the relationships in a dataset. Yet, in my opinion, the PPS provides three handy advantages:

PPS works for any type of data, also nominal/categorical variables

PPS quantifies non-linear relationships between variables

PPS acknowledges the asymmetry of those relationships

# You can get the official version from CRAN:
install.packages("ppsr")
## Or you can get the development version from GitHub:
# install.packages('devtools')
# devtools::install_github('https://github.com/paulvanderlaken/ppsr')

Usage

The ppsr package has three main functions that compute PPS:

score() – which computes an x-y PPS

score_predictors() – which computes X-y PPS

score_matrix() – which computes X-Y PPS

Visualizing PPS

Subsequently, there are two main functions that wrap around these computational functions to help you visualize your PPS using ggplot2:

visualize_predictors() – producing a barplot of all X-y PPS

visualize_matrix() – producing a heatmap of all X-Y PPS

Note that Species is a nominal/categorical variable, with three character/text options.

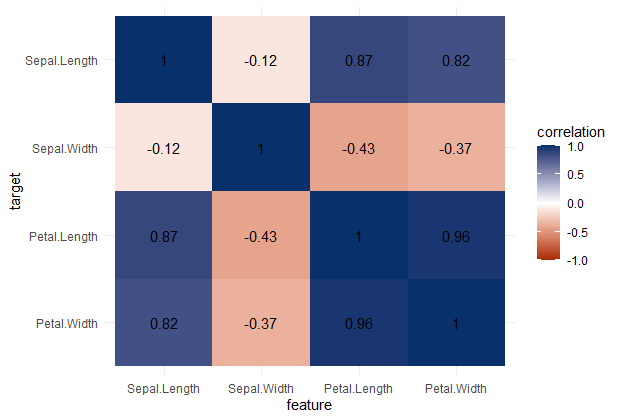

A correlation matrix would not be able to show us that the type of iris Species can be predicted extremely well by the petal length and width, and somewhat by the sepal length and width. Yet, particularly sepal width is not easily predicted by the type of species.

Exploring mtcars

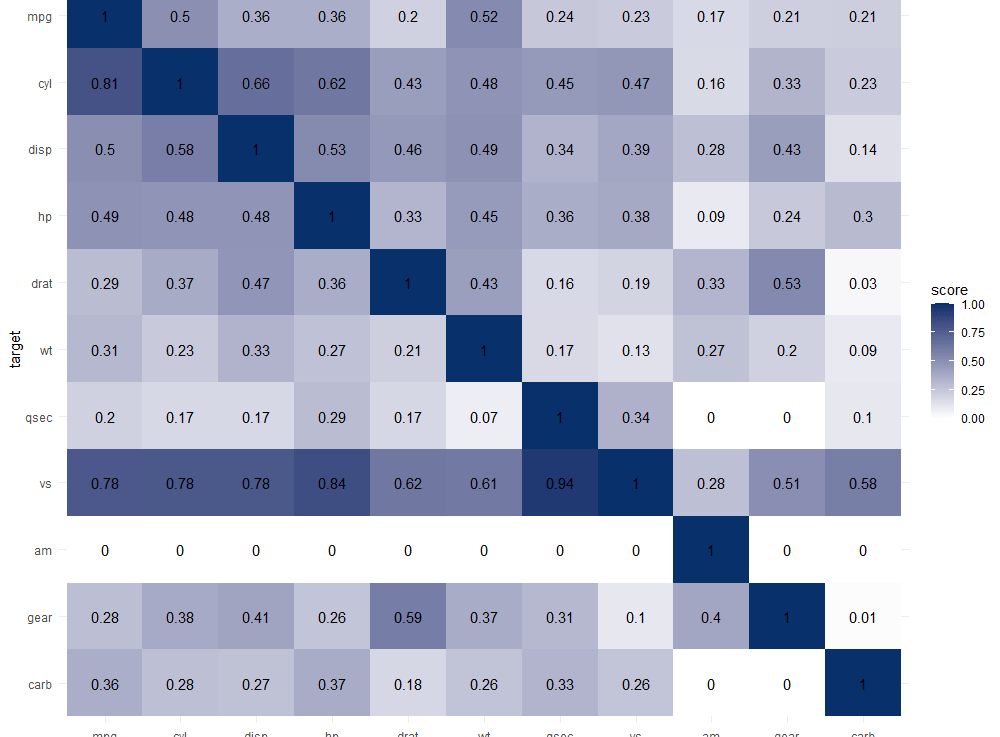

It takes about 10 seconds to run 121 decision trees with visualize_matrix(mtcars). Yet, the output is much more informative than the correlation matrix:

cyl can be much better predicted by mpg than the other way around

the classification of vs can be done well using nearly all variables as predictors, except for am

yet, it’s hard to predict anything based on the vs classification

a cars’ am can’t be predicted at all using these variables

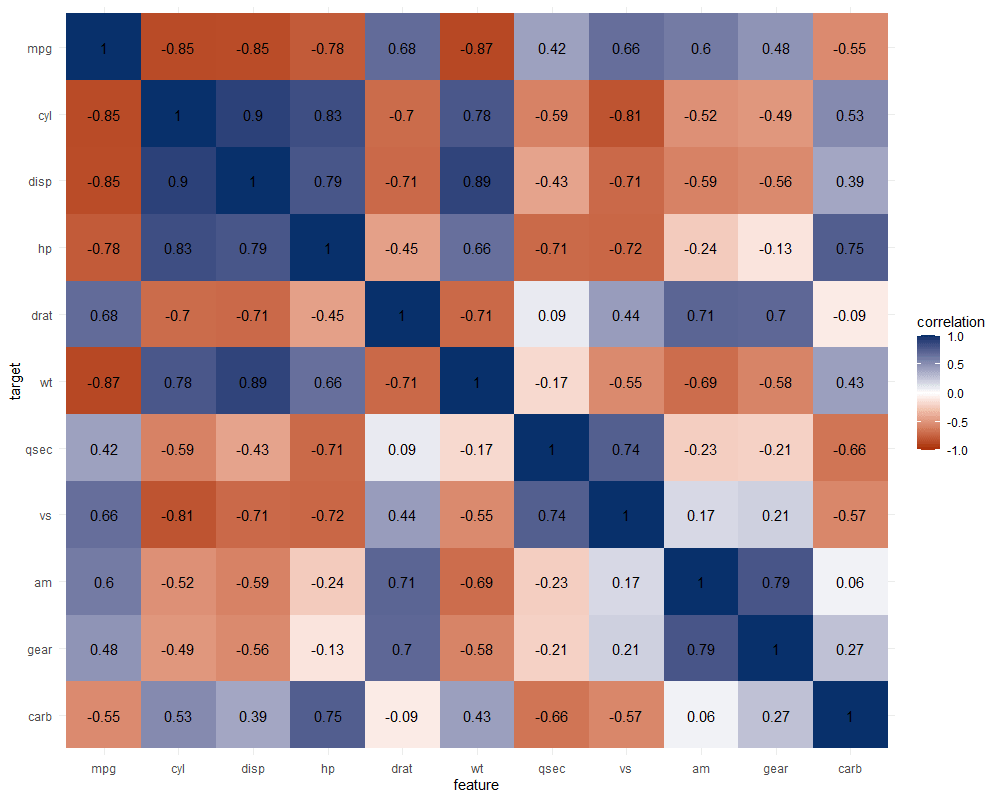

The correlation matrix does provides insights that are not provided by the PPS matrix. Most importantly, the sign and strength of any linear relationship that may exist. For instance, we can deduce that mpg relates strongly negatively with cyl.

Yet, even though half of the matrix does not provide any additional information (due to the symmetry), I still find it hard to derive the most important relations and insights at a first glance.

Moreover, the rows and columns for vs and am are not very informative in this correlation matrix as it contains pearson correlations coefficients by default, whereas vs and am are binary variables. The same can be said for cyl, gear and carb, which contain ordinal categories / integer data, so you can discuss the value of these coefficients depicted here.

Exploring trees

In R, there are many datasets built in via the datasets package. Let’s explore some using the ppsr::visualize_matrix() function.

datasets::trees has data on 31 trees’ girth, height and volume.

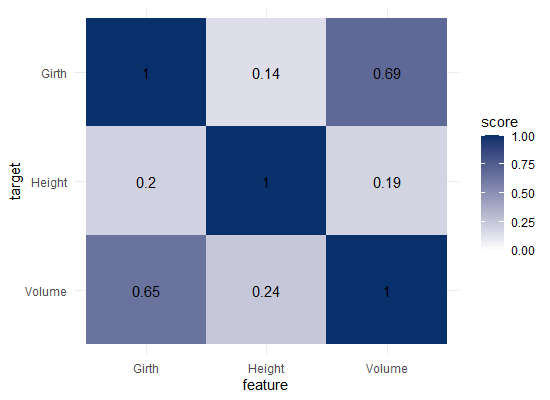

visualize_matrix(datasets::trees) shows that both girth and volume can be used to predict the other quite well, but not perfectly.

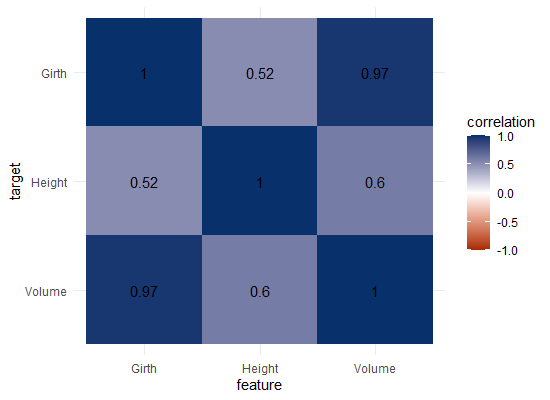

Let’s have a look at the correlation matrix.

The scores here seem quite higher in general. A near perfect correlation between volume and girth.

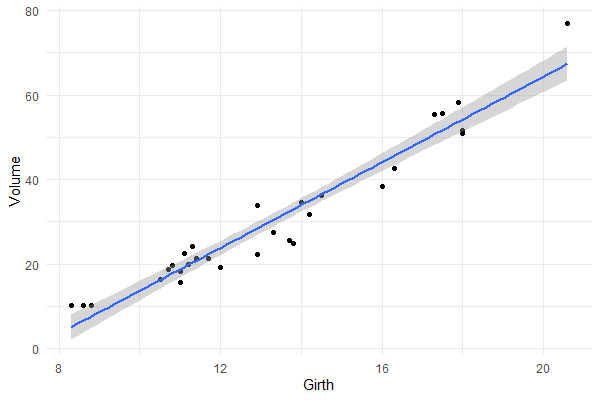

Is it near perfect though? Let’s have a look at the underlying data and fit a linear model to it.

You will still be pretty far off the real values when you use a linear model based on Girth to predict Volume. This is what the original PPS of 0.65 tried to convey.

Actually, I’ve run the math for this linaer model and the RMSE is still 4.11. Using just the mean Volume as a prediction of Volume will result in 16.17 RMSE. If we map these RMSE values on a linear scale from 0 to 1, we would get the PPS of our linear model, which is about 0.75.

So, actually, the linear model is a better predictor than the decision tree that is used as a default in the ppsr package. That was used to generate the PPS matrix above.

Yet, the linear model definitely does not provide a perfect prediction, even though the correlation may be near perfect.

Conclusion

In sum, I feel using the general idea behind PPS can be very useful for data exploration.

Particularly in more data science / machine learning type of projects. The PPS can provide a quick survey of which targets can be predicted using which features, potentially with more complex than just linear patterns.

Yet, the old-school correlation matrix also still provides unique and valuable insights that the PPS matrix does not. So I do not consider the PPS so much an alternative, as much as a complement in the toolkit of the data scientist & researcher.

Enjoy the R package, or the Python module for that matter, and let me know if you see any improvements!
