# Simulating and visualizing the Monty Hall problem in Python & R

I recently visited a data science meetup where one of the speakers — Harm Bodewes — spoke about playing out the Monty Hall problem with his kids.

The Monty Hall problem is probability puzzle. Based on the American television game show Let’s Make a Deal and its host, named Monty Hall:

You’re given the choice of three doors.

Behind one door sits a prize: a shiny sports car.

Behind the others doors, something shitty, like goats.

You pick a door — say, door 1.

Now, the host, who knows what’s behind the doors, opens one of the other doors — say, door 2 — which reveals a goat.

Do you want to stay with door 1,
or
would you like to switch to door 3?

The probability puzzle here is:

### Is switching doors the smart thing to do?

Back to my meetup.

Harm — the presenter — had ran the Monty Hall experiment with his kids.

Twenty-five times, he had hidden candy under one of three plastic cups. His kids could then pick a cup, he’d remove one of the non-candy cups they had not picked, and then he’d proposed them to make the switch.

The results he had tracked, and visualized in a simple Excel graph. And here he was presenting these results to us, his Meetup audience.

People (also statisticans) had been arguing whether it is best to stay or switch doors for years. Yet, here, this random guy ran a play-experiment and provided very visual proof removing any doubts you might have yourself.

## You really need to switch doors!

At about the same time, I came across this Github repo by Saghir, who had made some vectorised simulations of the problem in R. I thought it was a fun excercise to simulate and visualize matters in two different data science programming languages — Python & R — and see what I’d run in to.

So I’ll cut to the chase.

As we play more and more games against Monty Hall, it becomes very clear that you really, really, really need to switch doors in order to maximize the probability of winning a car.

Actually, the more games we play, the closer the probability of winning in our sample gets to the actual probability.

Even after 1000 games, the probabilities are still not at their actual values. But, ultimately…

If you stick to your door, you end up with the car in only 33% of the cases.

If you switch to the other door, you end up with the car 66% of the time!

## Simulation Code

In both Python and R, I wrote two scripts. You can find the most recent version of the code on my Github. However, I pasted the versions of March 4th 2020 below.

The first script contains a function simulating a single game of Monty Hall. A second script runs this function an X amount of times, and visualizes the outcomes as we play more and more games.

### Python

#### simulate_game.py

import random

def simulate_game(make_switch=False, n_doors=3, seed=None):
'''
Simulate a game of Monty Hall
For detailed information: https://en.wikipedia.org/wiki/Monty_Hall_problem
Basically, there are several closed doors and behind only one of them is a prize.
The player can choose one door at the start.
Next, the game master (Monty Hall) opens all the other doors, but one.
Now, the player can stick to his/her initial choice or switch to the remaining closed door.
If the prize is behind the player's final choice he/she wins.

Keyword arguments:
make_switch -- a boolean value whether the player switches after its initial choice and Monty Hall opening all other non-prize doors but one (default False)
n_doors -- an integer value > 2, for the number of doors behind which one prize and (n-1) non-prizes (e.g., goats) are hidden (default 3)
seed -- a seed to set (default None)
'''

# check the arguments
if type(make_switch) is not bool:
raise TypeError("make_switch must be boolean")
if type(n_doors) is float:
n_doors = int(n_doors)
raise Warning("float value provided for n_doors: forced to integer value of", n_doors)
if type(n_doors) is not int:
raise TypeError("n_doors needs to be a positive integer > 2")
if n_doors < 2:
raise ValueError("n_doors needs to be a positive integer > 2")

# if a seed was provided, set it
if seed is not None:
random.seed(seed)

# sample one index for the door to hide the car behind
prize_index = random.randint(0, n_doors - 1)

# sample one index for the door initially chosen by the player
choice_index = random.randint(0, n_doors - 1)

# we can test for the current result
current_result = prize_index == choice_index

# now Monty Hall opens all doors the player did not choose, except for one door
# next, he asks the player if he/she wants to make a switch
if (make_switch):
# if we do, we change to the one remaining door, which inverts our current choice
# if we had already picked the prize door, the one remaining closed door has a nonprize
# if we had not already picked the prize door, the one remaining closed door has the prize
return not current_result
else:
# the player sticks with his/her original door,
# which may or may not be the prize door
return current_result

#### visualize_game_results.py

from simulate_game import simulate_game
from random import seed
from numpy import mean, cumsum
from matplotlib import pyplot as plt
import os

# set the seed here
# do not set the seed parameter in simulate_game(),
# as this will make the function retun n_games times the same results
seed(1)

# pick number of games you want to simulate
n_games = 1000

# simulate the games and store the boolean results
results_with_switching = [simulate_game(make_switch=True) for _ in range(n_games)]
results_without_switching = [simulate_game(make_switch=False) for _ in range(n_games)]

# make a equal-length list showing, for each element in the results, the game to which it belongs
games = [i + 1 for i in range(n_games)]

# generate a title based on the results of the simulations
title = f'Switching doors wins you {sum(results_with_switching)} of {n_games} games ({mean(results_with_switching) * 100:.1f}%)' + \
'\n' + \
f'as opposed to only {sum(results_without_switching)} games ({mean(results_without_switching) * 100:.1f}%) when not switching'

# set some basic plotting parameters
w = 8
h = 5

# make a line plot of the cumulative wins with and without switching
plt.figure(figsize=(w, h))
plt.plot(games, cumsum(results_with_switching), color='blue', label='switching')
plt.plot(games, cumsum(results_without_switching), color='red', label='no switching')
plt.axis([0, n_games, 0, n_games])
plt.title(title)
plt.legend()
plt.xlabel('Number of games played')
plt.ylabel('Cumulative number of games won')
plt.figtext(0.95, 0.03, 'paulvanderlaken.com', wrap=True, horizontalalignment='right', fontsize=6)

# you can uncomment this to see the results directly,
# but then python will not save the result to your directory
# plt.show()
# plt.close()

# create a directory to store the plots in
# if this directory does not yet exist
try:
os.makedirs('output')
except OSError:
None
plt.savefig('output/monty-hall_' + str(n_games) + '_python.png')

### R

#### simulate-game.R

Note that I wrote a second function, simulate_n_games, which just runs simulate_game an N number of times.

#' Simulate a game of Monty Hall
#' For detailed information: https://en.wikipedia.org/wiki/Monty_Hall_problem
#' Basically, there are several closed doors and behind only one of them is a prize.
#' The player can choose one door at the start.
#' Next, the game master (Monty Hall) opens all the other doors, but one.
#' Now, the player can stick to his/her initial choice or switch to the remaining closed door.
#' If the prize is behind the player's final choice he/she wins.
#'
#' @param make_switch A boolean value whether the player switches after its initial choice and Monty Hall opening all other non-prize doors but one. Defaults to FALSE
#' @param n_doors An integer value > 2, for the number of doors behind which one prize and (n-1) non-prizes (e.g., goats) are hidden. Defaults to 3L
#' @param seed A seed to set. Defaults to NULL
#'
#' @return A boolean value indicating whether the player won the prize
#'
#' @examples
#' simulate_game()
#' simulate_game(make_switch = TRUE)
#' simulate_game(make_switch = TRUE, n_doors = 5L, seed = 1)
simulate_game = function(make_switch = FALSE, n_doors = 3L, seed = NULL) {

# check the arguments
if (!is.logical(make_switch) | is.na(make_switch)) stop("make_switch needs to be TRUE or FALSE")
if (is.double(n_doors)) {
n_doors = as.integer(n_doors)
warning(paste("double value provided for n_doors: forced to integer value of", n_doors))
}
if (!is.integer(n_doors) | n_doors < 2) stop("n_doors needs to be a positive integer > 2")

# if a seed was provided, set it
if (!is.null(seed)) set.seed(seed)

# create a integer vector for the door indices
doors = seq_len(n_doors)

# create a boolean vector showing which doors are opened
# all doors are closed at the start of the game
isClosed = rep(TRUE, length = n_doors)

# sample one index for the door to hide the car behind
prize_index = sample(doors, size = 1)

# sample one index for the door initially chosen by the player
# this can be the same door as the prize door
choice_index = sample(doors, size = 1)

# now Monty Hall opens all doors the player did not choose
# except for one door
# if we have already picked the prize door, the one remaining closed door has a nonprize
# if we have not picked the prize door, the one remaining closed door has the prize
if (prize_index == choice_index) {
# if we have the prize, Monty Hall can open all but two doors:
#   ours, which we remove from the options to sample from and open
#   and one goat-conceiling door, which we do not open
isClosed[sample(doors[-prize_index], size = n_doors - 2)] = FALSE
} else {
# else, Monty Hall can also open all but two doors:
#   ours
#   and the prize-conceiling door
isClosed[-c(prize_index, choice_index)] = FALSE
}

# now Monty Hall asks us whether we want to make a switch
if (make_switch) {
# if we decide to make a switch, we can pick the closed door that is not our door
choice_index = doors[isClosed][doors[isClosed] != choice_index]
}

# we return a boolean value showing whether the player choice is the prize door
return(choice_index == prize_index)
}

#' Simulate N games of Monty Hall
#' Calls the simulate_game() function n times and returns a boolean vector representing the games won
#'
#' @param n An integer value for the number of times to call the simulate_game() function
#' @param seed A seed to set in the outer loop. Defaults to NULL
#' @param ... Any parameters to be passed to the simulate_game() function.
#' No seed can be passed to the simulate_game function as that would result in n times the same result
#'
#' @return A boolean vector indicating for each of the games whether the player won the prize
#'
#' @examples
#' simulate_n_games(n = 100)
#' simulate_n_games(n = 500, make_switch = TRUE)
#' simulate_n_games(n = 1000, seed = 123, make_switch = TRUE, n_doors = 5L)
simulate_n_games = function(n, seed = NULL, make_switch = FALSE, ...) {
# round the number of iterations to an integer value
if (is.double(n)) {
n = as.integer(n)
}
if (!is.integer(n) | n < 1) stop("n_games needs to be a positive integer > 1")
# if a seed was provided, set it
if (!is.null(seed)) set.seed(seed)
return(vapply(rep(make_switch, n), simulate_game, logical(1), ...))
}

#### visualize-game-results.R

Note that we source in the simulate-game.R file to get access to the simulate_game and simulate_n_games functions.

Also note that I make a second plot here, to show the probabilities of winning converging to their real-world probability as we play more and more games.

source('R/simulate-game.R')

# install.packages('ggplot2')
library(ggplot2)

# set the seed here
# do not set the seed parameter in simulate_game(),
# as this will make the function return n_games times the same results
seed = 1

# pick number of games you want to simulate
n_games = 1000

# simulate the games and store the boolean results
results_without_switching = simulate_n_games(n = n_games, seed = seed, make_switch = FALSE)
results_with_switching = simulate_n_games(n = n_games, seed = seed, make_switch = TRUE)

# store the cumulative wins in a dataframe
results = data.frame(
game = seq_len(n_games),
cumulative_wins_without_switching = cumsum(results_without_switching),
cumulative_wins_with_switching = cumsum(results_with_switching)
)

# function that turns values into nice percentages
format_percentage = function(values, digits = 1) {
return(paste0(formatC(values * 100, digits = digits, format = 'f'), '%'))
}

# generate a title based on the results of the simulations
title = paste(
paste0('Switching doors wins you ', sum(results_with_switching), ' of ', n_games, ' games (', format_percentage(mean(results_with_switching)), ')'),
paste0('as opposed to only ', sum(results_without_switching), ' games (', format_percentage(mean(results_without_switching)), ') when not switching)'),
sep = '\n'
)

# set some basic plotting parameters
linesize = 1 # size of the plotted lines
x_breaks = y_breaks = seq(from = 0, to = n_games, length.out = 10 + 1) # breaks of the axes
y_limits = c(0, n_games) # limits of the y axis - makes y limits match x limits
w = 8 # width for saving plot
h = 5 # height for saving plot
palette = setNames(c('blue', 'red'), nm = c('switching', 'without switching')) # make a named color scheme

# make a line plot of the cumulative wins with and without switching
ggplot(data = results) +
geom_line(aes(x = game, y = cumulative_wins_with_switching, col = names(palette[1])), size = linesize) +
geom_line(aes(x = game, y = cumulative_wins_without_switching, col = names(palette[2])), size = linesize) +
scale_x_continuous(breaks = x_breaks) +
scale_y_continuous(breaks = y_breaks, limits = y_limits) +
scale_color_manual(values = palette) +
theme_minimal() +
theme(legend.position = c(1, 1), legend.justification = c(1, 1), legend.background = element_rect(fill = 'white', color = 'transparent')) +
labs(x = 'Number of games played') +
labs(y = 'Cumulative number of games won') +
labs(col = NULL) +
labs(caption = 'paulvanderlaken.com') +
labs(title = title)

# save the plot in the output folder
# create the output folder if it does not exist yet
if (!file.exists('output')) dir.create('output', showWarnings = FALSE)
ggsave(paste0('output/monty-hall_', n_games, '_r.png'), width = w, height = h)

# make a line plot of the rolling % win chance with and without switching
ggplot(data = results) +
geom_line(aes(x = game, y = cumulative_wins_with_switching / game, col = names(palette[1])), size = linesize) +
geom_line(aes(x = game, y = cumulative_wins_without_switching / game, col = names(palette[2])), size = linesize) +
scale_x_continuous(breaks = x_breaks) +
scale_y_continuous(labels = function(x) format_percentage(x, digits = 0)) +
scale_color_manual(values = palette) +
theme_minimal() +
theme(legend.position = c(1, 1), legend.justification = c(1, 1), legend.background = element_rect(fill = 'white', color = 'transparent')) +
labs(x = 'Number of games played') +
labs(y = '% of games won') +
labs(col = NULL) +
labs(caption = 'paulvanderlaken.com') +
labs(title = title)

# save the plot in the output folder
# create the output folder if it does not exist yet
if (!file.exists('output')) dir.create('output', showWarnings = FALSE)
ggsave(paste0('output/monty-hall_perc_', n_games, '_r.png'), width = w, height = h)

#### Visualizations (ggplot2)

I specifically picked a seed (the second one I tried) in which not switching looked like it was better during the first few games played.

In R, I made an additional plot that shows the probabilities converging.

As we play more and more games, our results move to the actual probabilities of winning:

After the first four games, you could have erroneously concluded that not switching would result in better chances of you winning a sports car. However, in the long run, that is definitely not true.

I was actually suprised to see that these lines look to be mirroring each other. But actually, that’s quite logical maybe… We already had the car with our initial door guess in those games. If we would have sticked to that initial choice of a door, we would have won, whereas all the cases where we switched, we lost.

## Keep me posted!

I hope you enjoyed these simulations and visualizations, and am curious to see what you come up with yourself!

For instance, you could increase the number of doors in the game, or the number of goat-doors Monty Hall opens. When does it become a disadvantage to switch?

Cover image via Medium

# Functional programming and why not to “grow” vectors in R

For fresh R programmers, vectorization can sound awfully complicated. Consider two math problems, one vectorized, and one not:

Why on earth should R spend more time calculating one over the other? In both cases there are the same three addition operations to perform, so why the difference? This is what we will try to illustrate in this post, which is inspired on work by Naom Ross and the University of Auckland.

## R behind the scenes:

R is a high-levelinterpreted computer language. This means that R takes care of a lot of basic computer tasks for you. For instance, when you type i <- 5.0 you don’t have to tell R:

• That 5.0 is a floating-point number
• That i should store numeric-type data
• To find a place in memory for to put 5
• To register i as a pointer to that place in memory

You also don’t have to convert i <- 5.0 to binary code. That’s done automatically when you hit Enter. Although you are probably not aware of this, many R functions are just wrapping your input and passing it to functions of other, compiled computer languages, like C, C++, or FORTRAN, in the back end.

Now here’s the crux: If you need to run a function over a set of values, you can either pass in a vector of these values through the R function to the compiled code (math example 1), or you could call the R function repeatedly for each value separately (math example 2). If you do the latter, R has to do stuff (figuring out the above bullet points and translating the codeeach time, repeatedly. However, if you call the function with a vector instead, this figuring out part only happens once. For instance, R vectors are constricted to a single data type (e.g., numeric, character) and when you use a vector instead of seperate values, R only needs to determine the input data type once, which saves time. In short, there’s no advantage to NOT organizing your data as vector.

## For-loops and functional programming (*ply)

One example of how new R programmers frequently waste computing time is via memory allocation. Take the below for loop, for instance:

iterations = 10000000

system.time({
j = c()
for(i in 1:iterations){
j[i] <- i
}
})
##    user  system elapsed
##    3.71    0.23    3.94

Here, vector j starts out with length 1, but for each iteration in the for loop, R has to re-size the vector and re-allocate memory. Recursively, R has to find the vector in its memory, create a new vector that will fit more data, copy the old data over, insert the new data, and erase the old vector. This process gets very slow as vectors get big. Nevertheless, it is often how programmers store the results of their iterative processes. Tremendous computing power can be saved by pre-allocating vectors to fit all the values beforehand, so that R does not have to do unnecessary actions:

system.time({
j = rep(NA, iterations)
for(i in 1:iterations){
j[i] <- i
}
})
##    user  system elapsed
##    0.88    0.01    0.89

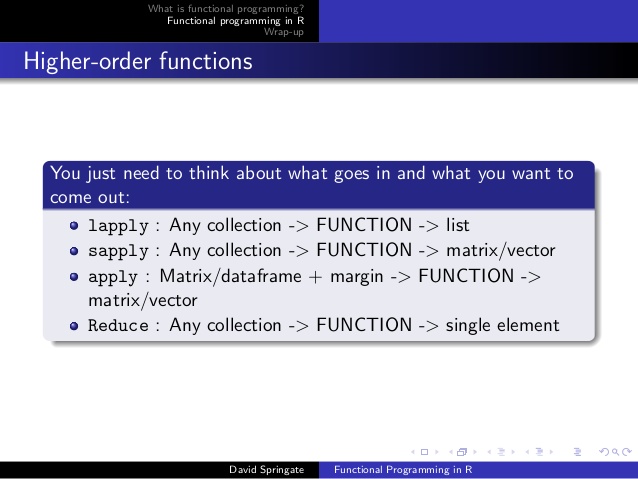

More advanced R users tend to further optimize via functionals. This family of functions takes in vectors (or matrices, or lists) of values and applies other functions to each. Examples are apply or plyr::*ply functions, which speed up R code mainly because the for loops they have inside them automatically do things like pre-allocating vector size. Functionals additionally prevent side effects: unwanted changes to your working environment, such as the remaining i after for(i in 1:10). Although this does not necessarily improve computing time, it is regarded best practice due to preventing consequent coding errors.

## Conclusions

There are cases when you should use for loops. For example, the performance penalty for using a for loop instead a vector will be small if the number of iterations is relatively small, and the functions called inside your for loop are slow. Here, looping and overhead from function calls make up a small fraction of your computational time and for loops may be more intuitive or easier to read for you. Additionally, there are cases where for loops make more sense than vectorized functions: (1) when the functions you seek to apply don’t take vector arguments and (2) when each iteration is dependent on the results of previous iterations.

Another general rule: fast R code is short. If you can express what you want to do in R in a line or two, with just a few function calls that are actually calling compiled code, it’ll be more efficient than if you write long program, with the added overhead of many function calls.

Finally, there is a saying that “premature optimization is the root of all evil”. What this means is that you should not re-write your R code unless the computing time you are going to save is worth the time invested. Nevertheless, if you understand how vectorization and functional programming work, you will be able to write more faster, safer, and more transparent (short & simple) programs.
